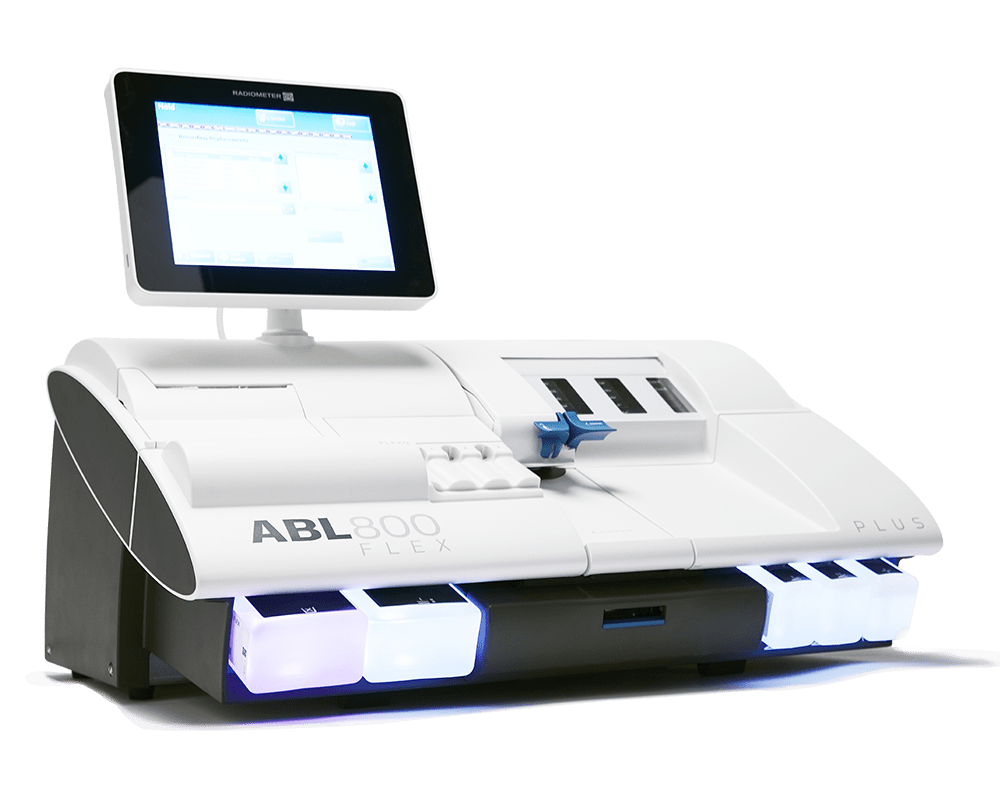

ABL800 FLEX 혈액 가스 분석기

업그레이드된 PLUS 버전으로 만날 수 있는 ABL800 FLEX 혈액 가스 분석기

  • 정보 요청

    라디오미터의 혈액가스분석기에 대해 더 자세히 알고 싶습니다.

    아래 기재한 방법으로 라디오미터로부터 새로운 소식 및 관련 정보를 받고 싶습니다. 또한 언제든지 수신 거부할 수 있다는 것을 알고 있습니다.
  • 브로셔 다운로드
  • 10년 이상 검증된 성능
  • 사용자 편의를 위한 새로운 디자인
  • FLEXQ를 이용한 검사 시간 단축

하나의 혈액 검체로 18가지 응급 검사 가능

ABL800 FLEX 혈액 가스 분석기는 하나의 혈액 검체로 총 18가지 응급 항목까지 한번에 측정할 수 있습니다. 이를 통해 중환자에 대한 신속한 진단이 가능합니다.

측정 항목

혈액 가스:
pH

수소이온 농도

pH = -log aH+

여기서 aH+가 수소이온의 활성도를 나타냅니다. pH가 낮으면 산증, pH가 높으면 알칼리증을 의미합니다. [1,2]

  1. CLSI. Blood gas and pH analysis and related measurements; Approved Guidelines. CLSI document CA46-A2, 29, 8. Clinical and Laboratory Standards Institute, 940 West Valley Road, Suite 1400, Wayne, Pennsylvania 19087-1898 USA, 2009
  2. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook
, pCO2

이산화탄소의 부분 압력

이산화탄소(CO2)는 산성 가스로서 혈액에서 CO2의 양은 주로 호흡의 속도 및 환기에 의해 조절됩니다. pCO2는 혈액 내 CO2의 부분 압력입니다. 이는 기체 상태로 존재하는 총 CO2 중 혈장에 녹아 있는 약 5%에 해당하는 작은 부분에 의해 가해지는 압력을 측정한 수치입니다. pCO2는 산염기 균형에 있어서 호흡과 관련된 지표이며, 폐환기가 잘 이루어지고 있는 지를 보여줍니다. 환기장치의 설정이 알맞은지 산염기 상태의 변화를 통해 판단할 수 있습니다. [1,2]
  1. Higgins C. Parameters that reflect the carbon dioxide content of blood. www.acutecaretesting.org Oct 2008.
  2. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014
, pO2

산소의 부분 압력

환기/관류 등에 의해 혈액 내 산소량은 조절됩니다. pO2는 혈액과 평형 상태를 이루는 혈액 내 산소의 부분 압력입니다. pO2는 혈액 내의 총 산소 중 혈장에 녹아 있는 1~2% 정도의 아주 작은 부분을 의미합니다. [1] 나머지 산소 98~99%는 적혈구의 헤모글로빈과 결합하여 존재하며, pO2는 주로 폐에서 흡수되는 산소를 반영합니다. [2]

1. Wettstein R, Wilkins R. Interpretation of blood gases. In: Clinical assessment in respiratory care, 6th ed. St. Louis: Mosby, 2010.
2. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook.

대사 물질:
cGlu

Glucose

Glucose는 사람의 대사활동에 있어 가장 풍부한 탄수화물로서 내세포 에너지의 주요 원천입니다. Glucose는 주로 식이 탄수화물에서 파생되나, 주로 간과 신장에서 글루코네오겐의 단백 동화 과정과 글리코겐의 분해(글리코게놀리시스)를 거쳐 생성되기도 합니다. 이렇게 자체적으로 생성된 glucose는 공복 기간 동안 음식물을 통해 glucose가 제공되지 않는 동안 혈당 농도를 정상 범위 내로 유지하는 역할을 합니다. [1]

1. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook.

, cLac

Lactate

Lactic acid가 해리되어 생성되는 음이온을 띄는 lactate는 glucose의 내세포 대사 산물입니다. Lactate는 무산소로 에너지가 생산되는 당분해 동안 골격 근육 세포, 적혈구, 뇌를 비롯해 기타 조직에 의해 생산됩니다. Lactate는 내세포 유체 내에서 pyruvate으로부터 형성되며, 그 반응은 젖산탈수소효소(LDH)에 의해 촉매가 됩니다. [1,2]

1. Robergs RA, Ghiasvand F, Parker D. Biochemistry of exercise-induced metabolic acidosis. Am J Physiol Regul Integr Comp Physiol 2004; 287: R502-16.

2. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook.

, cCrea

Creatinine

Creatinine은 근육 대사활동에 의해 생성되는 노폐물로서, 근육 세포 안에서 에너지를 생산하는 중요한 분자인 creatine으로부터 생성됩니다. Creatinine은 소변을 통해 체내에서 제거되고, creatinine의 혈액 내 농도는 사구체 여과기능을 반영하기 때문에 신장 기능을 반영합니다. [1]

1. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook.

전해질:
cCa2+

Calcium

이온(Ca2+)은 신체 내에 가장 일반적으로 존재하는 양이온 중 하나로서, 혈액의 외세포액에 약 1% 정도 존재합니다. Ca2+는 뼈의 미네랄화를 비롯해 심장과 골격 근육의 수축, 신경 근육성 전달, 호르몬 분비와 같은 많은 세포 활동과 혈액 응고와 같은 다양한 효소 반응에서 중요한 역할을 담당합니다. [1]

1. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook.

, cCl-

Chloride

Chloride (Cl-)는 외세포액의 주요 음이온이자, 혈액에서 가장 중요한 음이온 중 하나입니다. Cl-은 삼투압, 유체 균형, 근육 활동, 혈장에서 이온의 균형을 유지하는 주된 기능을 하고, 산염기 불균형의 원인을 밝히는 데 도움이 됩니다. [1]

1. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook.

, cK+

Potassium

Potassium (K+)은 내세포액에 존재하는 주요 양이온으로서, 내세포액 내의 농도가 (조직 세포에서 ∼150 mmol/L, 적혈구에서 ∼105 mmol/L) 외세포액 내의 농도보다 (∼4 mmol/L) 25~37배 높습니다. [1, 2] K+는 신경 근육 흥분도의 조절, 심장 박동의 조절, 내세포 및 외세포 체적과 산염기 상태의 조절과 같은 신체의 주요 기능을 담당합니다. [3]

1. Burtis CA, Ashwood ER, Bruns DE. Tietz textbook of clinical chemistry and molecular diagnostics. 5th ed. St. Louis: Saunders Elsevier, 2012.
2. Engquist A. Fluids/Electrolytes/Nutrition. 1st ed. Copenhagen: Munksgaard, 1985.
3. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook.



, cNa+

Sodium

Sodium (Na+)은 외세포액 내 가장 많이 존재하는 양이온으로서, 외세포액 내의 농도가 (∼140 mmol/L) 내세포액 내의 농도보다 (∼10 mmol/L) 14배 높습니다. Na+ 는 외세포액의 삼투압농도를 유지하는 데 주된 역할을 하며, 주로 수분 균형을 조절 및 통제하고, 혈압을 유지하는 주된 역할을 합니다. 또한 Na+는 신경 자극을 전달하고 근육 수축을 활성화시킵니다. [1]

1. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook.

CO-oximetry:
FCOHb

일산화탄소헤모글로빈

FCOHb는 총 헤모글로빈(ctHb)의 분획으로 일산화탄소헤모글로빈(COHb)으로 표시합니다. 규칙에 따라 그 분획은 백분율(%)로 표시됩니다. [1]

0 ~ 60%의 범위에서 동맥혈액(COHb(a))과 정맥혈액(COHb(v))에서의 COHb는 비슷하기 때문에, 정맥혈액 또는 동맥혈액 중 한 가지만 분석하면 됩니다. [1] 대부분의 의학 자료에서 FCOHb(a)는 간단하게 COHb로 표시됩니다. [2]

1. Lopez DM, Weingarten-Arams JS, Singer LP, Conway EE Jr. Relationship between arterial, mixed venous and internal jugular carboxyhemoglobin concentrations at low, medium and high concentrations in a piglet model of carbon monoxide toxicity. Crit Care Med 2000; 28: 1998-2001.
2. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook.

, ctBil

Bilirubin

Bilirubin은 헤모글로빈의 heme 그룹이 분해될 때 나오는 노란색 분해 산물입니다. Bilirubin은 세망내피계로부터 생성되어 혈액을 통해 간으로 운반되며, 간에서는 생물학적 변형이 된 후 담즙으로 배출됩니다. 황달, 즉 피부가 병리학적으로 노란색으로 변색되는 현상은 조직에 빌리루빈이 비정상적으로 축적되기 때문이며, 혈액 내 bilirubin 농도가 증가(고빌리루빈혈증)되어 나타납니다. [1]

1. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook.

, ctHb

총 헤모글로빈

혈액 내 총 헤모글로빈(ctHb)의 농도는 산소헤모글로빈(cO2Hb), 탈산소헤모글로빈(cHHb)을 비롯해 산소와 결합할 수 없는 헤모글로빈 종류, 즉

일산화탄소헤모글로빈 (cCOHb) (COHb 참조), 메트헤모글로빈 (cMetHb) (MetHb 참조) 및 설프헤모글로빈 (cSulfHb)를 포함합니다.

다시 말해서,

ctHb = cO2Hb + cHHb + cCOHb + cMetHb + cSulfHb

하지만 미세하게 존재하는 sulfHb는 대부분의 산소 측정 장비에서 제공되는 ctHb에 포함되지 않습니다. [1]

1. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook.

, FHbF

태아헤모글로빈의 분획

혈액 내 총 헤모글로빈에 존재하는 FHbF [1]

, FHHb

탈산소헤모글로빈의 분획

혈액 내 총 헤모글로빈에 존재하는 FHHb [1].

, FMetHb

메트헤모글로빈

대부분의 의학 자료에서는 MetHb(a)를 단순히 메트헤모글로빈(MetHb)라고 표시합니다. [2]

1. CLSI. Blood gas and pH analysis and related measurements; Approved Guidelines. CLSI document CA46-A2, 29, 8. Clinical and Laboratory Standards Institute, 940 West Valley Road, Suite 1400, Wayne, Pennsylvania 19087-1898 USA, 2009.

2. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook.



, sO2

산소 포화도

산소 포화도(sO2)란 산소를 운반할 수 있는 헤모글로빈 (즉, 산소헤모글로빈(O2Hb)과 탈산소헤모글로빈(HHb)의 농도에 대한 산소헤모글로빈 농도의 비율입니다. [1]

sO2 는 현재 가용한 산소 운반 능력을 나타냅니다. 동맥혈에서는 산소의 98~99%가 적혈구 내의 헤모글로빈과 결합하여 운반됩니다. 혈액으로 운반되는 산소 중 남은 1~2%가 혈장에 용해되어 존재하며, 이것이 산소 부분 압력 (pO2) 으로 보고됩니다. [2,3]

1. CLSI. Blood gas and pH analysis and related measurements; Approved Guidelines. CLSI document CA46-A2, 29, 8. Clinical and Laboratory Standards Institute, 940 West Valley Road, Suite 1400, Wayne, Pennsylvania 19087-1898 USA, 2009.

2. Higgins C. Parameters that reflect the carbon dioxide content of blood. www.acutecaretesting.org Oct 2008.

3. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook.

, FO2Hb

산소헤모글로빈의 분획

혈액 내 총 헤모글로빈에 존재하는 FO2Hb [1]

1. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook.

더욱 향상된 사용자 편의

ABL800 FLEX 혈액 가스 분석기는 PLUS 버전으로 디자인이 새롭게 업그레이드 되었고, 사용자 편의가 더욱 향상되어 혈액 가스 검사를 더욱 효율적으로 진행합니다.

조작이 용이한 터치스크린

태블릿 같이 빠르게 반응하는 속도, 쉬운 사용자 인터페이스, 업그레이드된 도움 기능까지 갖췄습니다.

신속한 진단이 가능

FLEXQ 모듈을 통해 혈액 검체를 최대 3개까지 연속으로 검사하여 신속하고 믿을 수 있는 결과를 얻을 수 있습니다.

다양한 응급 항목 검사 가능

하나의 혈액 검체로 최대 18가지의 응급 항목들을 검사할 수 있습니다.

분석 전 에러 요인 감소

FLEXQ 모듈을 통해 혈액 검체를 자동으로 스캔하고, 자동으로 혼합합니다.

소량의 혈액 검체로 검사 가능

FLEXMODE 및 MICROMODE를 통해 최소 35 마이크로리터(μL)의 혈액 검체로도 신뢰할 수 있는 결과를 얻을 수 있습니다.

필요한 곳에서 결과 확인 가능

Radiometer의 데이터 관리 시스템인 AQURE를 통해 결과가 필요한 곳으로 자동으로 전송됩니다. 환자의 병상 옆 모니터, 병원 및 검사실 정보시스템(HIS/LIS)으로 전송됩니다.

FLEXQ로 혈액 가스 검사 시간 단축

ABL800 FLEX 혈액 가스 분석기의 FLEXQ 모듈을 이용하면 혈액 가스 검체를 최대 3개까지 자동으로 연속 검사할 수 있습니다.

FLEXQ 기능을 이용하면 분석기 앞에서 환자 결과를 기다릴 필요가 없습니다. Radiometer의 safePICO 주사기를 FLEXQ 모듈 위에 장착하기만 하면, 혈액 검체가 자동으로 스캔되고, 혼합되고, 분석됩니다.

모세관채혈튜브에 최적화된 검사 기능

ABL800 FLEX 혈액 가스 분석기는 FLEXMODE 기능을 통해서 소량의 신생아 검체로도 중요한 항목들의 결과를 얻을 수 있도록 모세관채혈튜브에 최적화되어 있습니다.

FLEXMODE 기능을 사용하면 채혈한 검체량에 따라 최대한 많은 항목을 검사할 수 있습니다.

검체량

측정 항목:

35-55 μL pH + OXI
50-70 μL pH + OXI + BG
65-100 μL pH + OXI + BG + MET
90 μL pH + OXI + BG + MET + LYT
195 μL pH + OXI + BG + MET + LYT + ctBil
